詳細信息

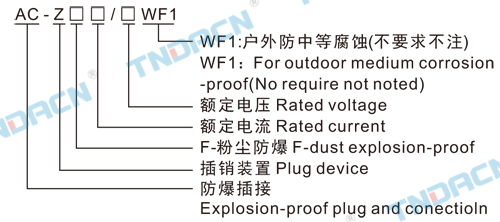

型號含義 Model implication
適用范圍 Applications
1.1區、2區或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC類爆炸性氣體環境或或燃性粉塵環境;
3.戶內、戶外(IP54,IP65*)
4.溫度組別：T1~T4
5.應用于石油、化工、航天、軍工等場所。
1.Hazardous:division 1&2 or zone 20、21、22；
2.Explosive gas or steam atmosphere: class ⅡA,ⅡB,ⅡC orflammable dust atmospheres;
3.Indoor or outdoor(IP54,IP65*)
4.Temperature class: T1~T4
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.
產品特點 Features
1.殼體采用高強度合金鋁一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、防爆性能優良，表面塑粉附著力強具有良好的防腐能力，表面光潔，美觀大方；
2.具有聯鎖結構，只有插座內的開關分?jǐn)嗪蠓侥馨纬霾孱^。
3.鋼管或電纜布線。
1.Shell made of high strength aluminum alloy casting off thesurface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength,Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth,elegant appearance;
2.With interlocks, only if the switch inside the socket is off, theplug can be extracted.
3.Wiring with steel tube or cable.
主要技術參數 Main technical parameters

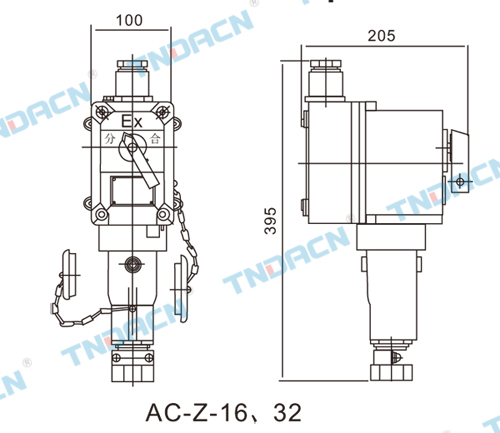

外形舉例 Outline example
